Technical Specifications
| Product Name | Fan |
|---|---|
| Type Name | Silent |

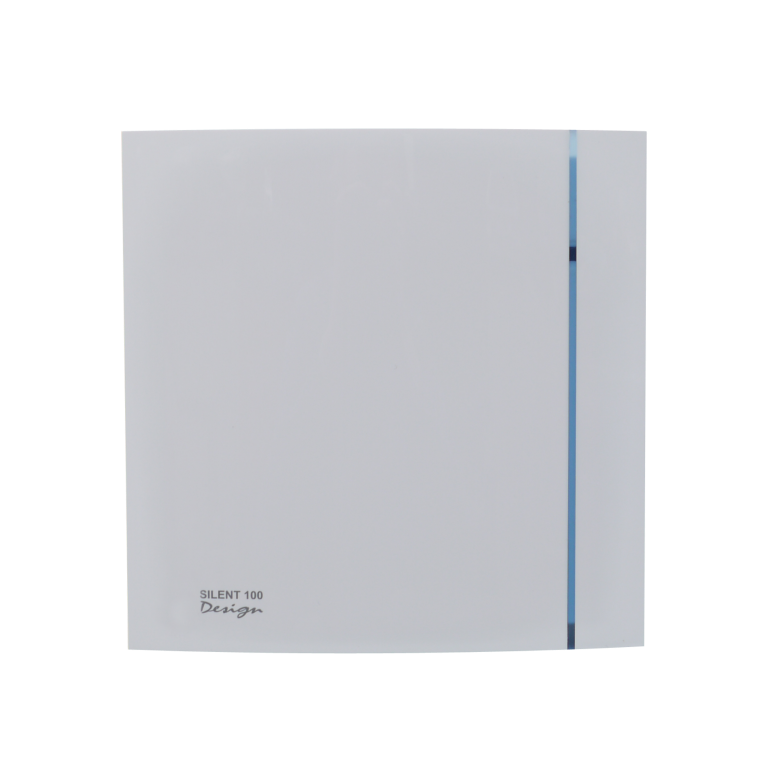

| Qualifier | 100mm Silent Design Extractor Fan c/w Over-run Timer |
| Cased | Y |
| Number of Speeds | 1 |
| Use | WC¿s and bathrooms |
| Motor Power | 8 W |
| Mounting | Wall |
| Ingress Protection | IP45 |
| Motor Protection | Standard Thermal Overload Protection |
| Air Extraction Rate m3/h | 82.8 M3/h |
| Reversible | N |
| c/w Light | N |
| c/w Duct | N |
| c/w Timer | Y |
| c/w Sensor | N |
| c/w Humidistat | N |
| c/w Pullcord | N |
| Material | ABS |
| Body Colour | White |
| Overall Length | 188 mm |
| Overall Width | 188 mm |
| Overall Depth | 129.5 mm |
| Impeller Diameter | 98.9 mm |
| Diameter (mm) | 100 mm |
| Number of Phases | Single |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Maximum Speed | 2400 rpm |
| Maximum Sound Pressure Level | 26.5 Db |
| CE Approved | Y |
| Unit Weight | 0.65 kg |
| Part L Approved | N |
