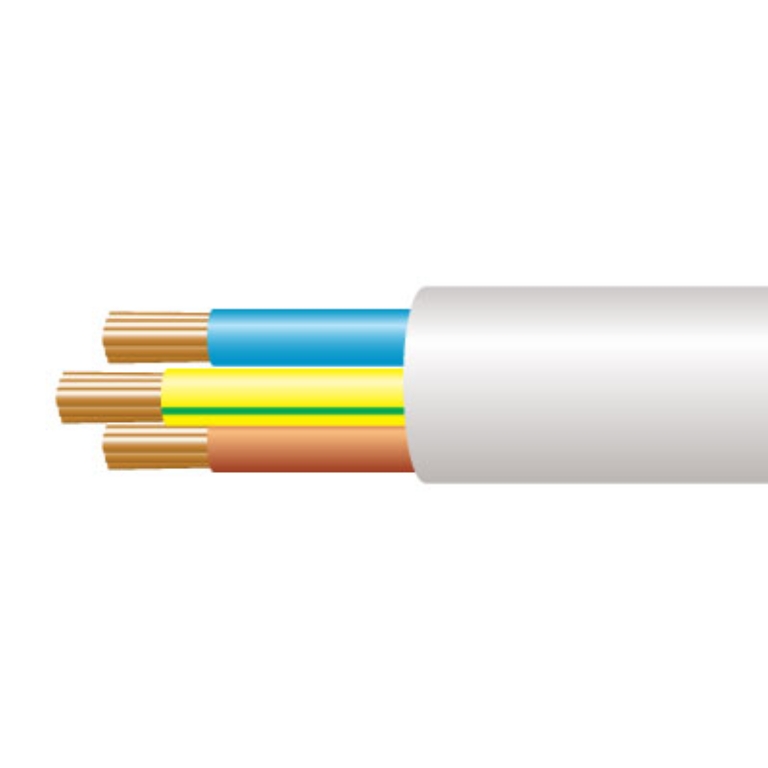

3 Core Circular H/R Flex PVC Cable 1.5mm White

Sign Up For Trade Account

3 Core Circular H/R Flex PVC Cable 1.5mm White

SKU: 3093Y1.5WHI50
100305 Available
50m Reel (Price Per Mtr)

£0.99 Inc VAT

£0.83 Ex VAT

Shipping

Please Select Your Delivery Method Below.

Technical Specifications

Product Name

Cable

Type Name

Flexible

Number of Cores

3

Core Identification

Coloured

Earth Core

Y

Conductor Material

Copper

Conductor Construction

Plain Annealed Flexible

Insulation Type

PVC

Armoured

N

Fire Resistant

N

Minimum Bending Radius

44.4-56.4

Flexibility class

5

Magnetic armour

N

Earthed Metallic Covering

N

Core Colours
Outer Sheath Material

PVC

Outer Sheath Colour

White

Drum Length

100 Metres

Cable Diameter

7.4-9.4 mm

Conductor Size

1.5 mm2

Stranding Size

30/0.25 mm

Minimum Temperature Rating

-15 Degrees C

Maximum Temperature Rating

90 Degrees C

Voltage Rating

300/500 V

Conforming Standard
Unit Weight

5 kg
